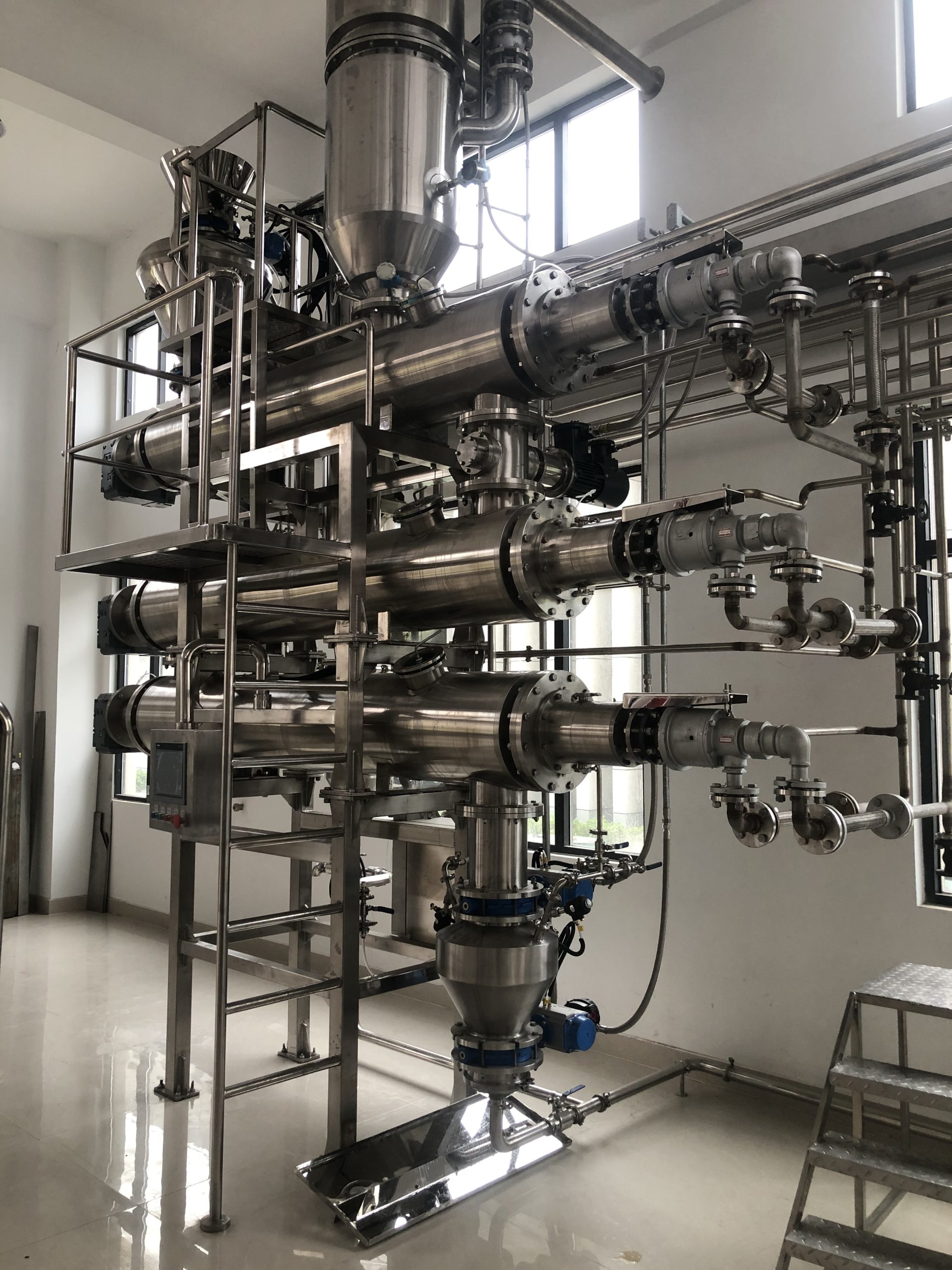

VSD Continuous Drying System

Continuous vacuum dryer for free flowing powders and other heat sensitive products under vacuum

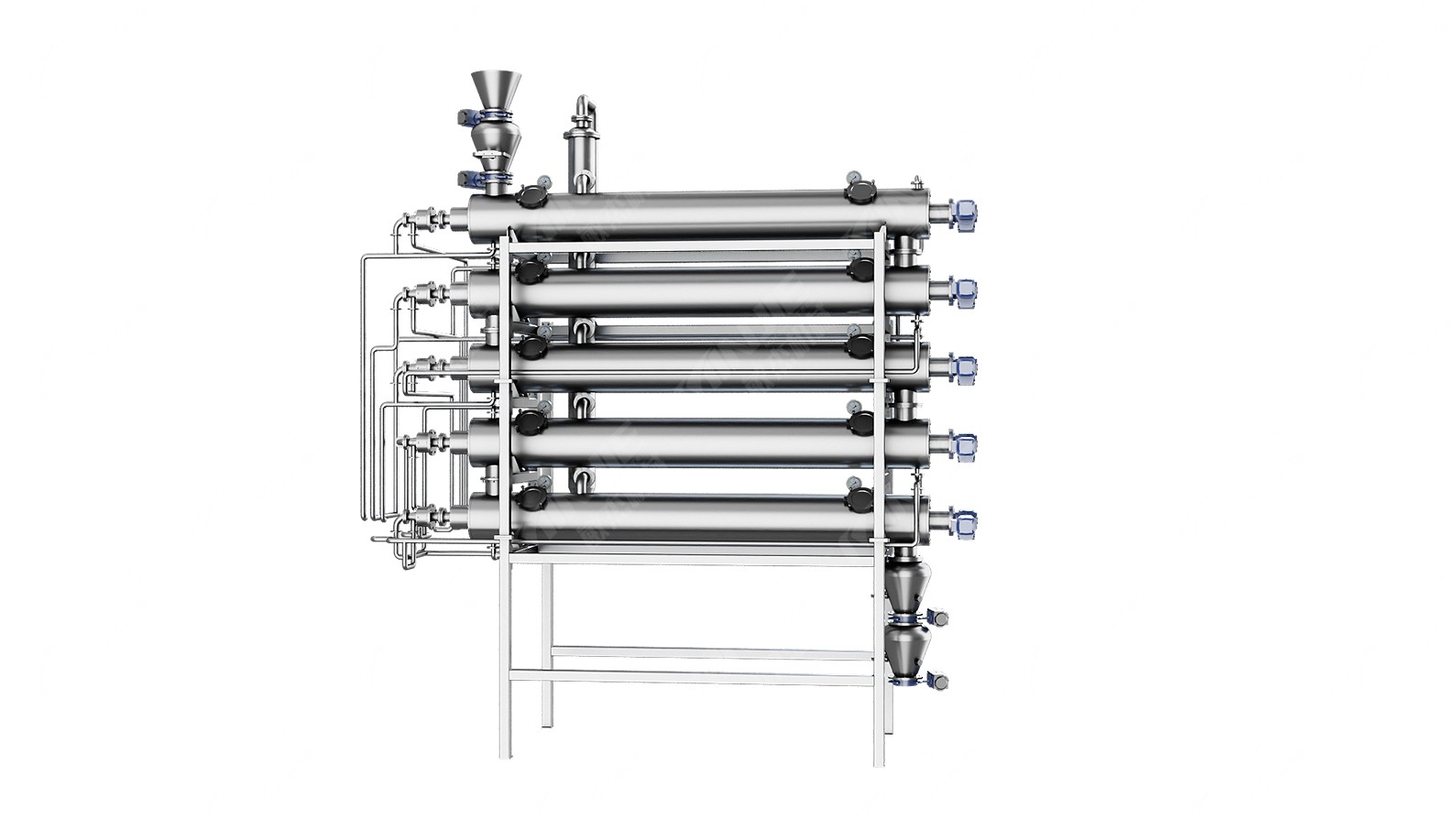

VSD continuous drying system is a new type of drying device. The main part is mainly composed of power part, drive hollow shaft, spiral plate and outer cylinder jacket. During the drying process, heat medium is passed into the spiral plate and the jacket of the outer cylinder. After heat transfer is fully contacted with the material on their surface, continuous drying of the material is realized under vacuum condition.

The heat medium can be steam, hot water or heat conduction oil. During the drying process, the heating temperature can be controlled according to the moisture content of the material to avoid of over-drying. The drying time, heating temperature and working vacuum can be adjusted automatically. Vacuum spiral dryer is easy to operate with low energy consumption and high degree of automation. At the same time, it is cost saving, safety and environmental protection. The evaporation is completely closed with efficient recycling.

Range of application:

Advantage:

Heating under vacuum condition, high drying efficiency, one step to solve the problem of drying and conveying;
The drying temperature can be adjusted to 40-250°C, which solves the problems of decomposition, denaturation and loss of useful components of heat-sensitive materials;
Heating stage control, suitable for all kinds of complex material;
Precisely PLC temperature control, avoid material over drying, sticking on the wall and other issues;
The flow direction of materials is consistent, no mixing of dry and wet materials, stable drying quality;
The drying efficiency remains stable for simple operation with continuous feeding and unloading, low labor intensity;
No squeezing damage with steadily movement of materials, and no damage to the crystal form of materials;
Gas, liquid, solid three-phase recovery in order, environmental friendly & high yield;
The whole system adopts PLC automatic control, the system has good sealing, low failure rate and stable operation;
High efficiency, low operating cost & low one-time investment;
Suitable for high cleanliness materials, and the parts in contact with can be coated;
Less wearing parts, convenient operation & maintenance.

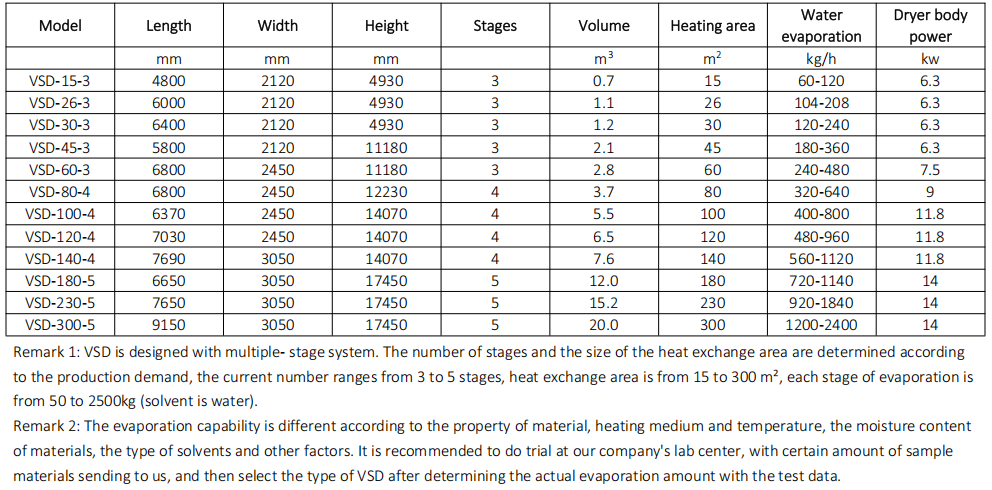

Equipment Specification:
