Project Description

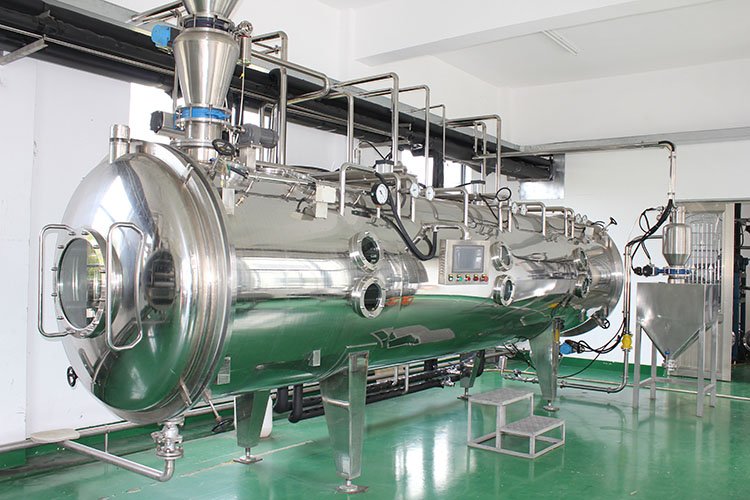

Vacuum Belt Dryer for powder & particle

Continuous vacuum belt dryer for free flowing powders and other heat sensitive products under vacuum

Vacuum-Belt-Dryer-For-Powder&Particle

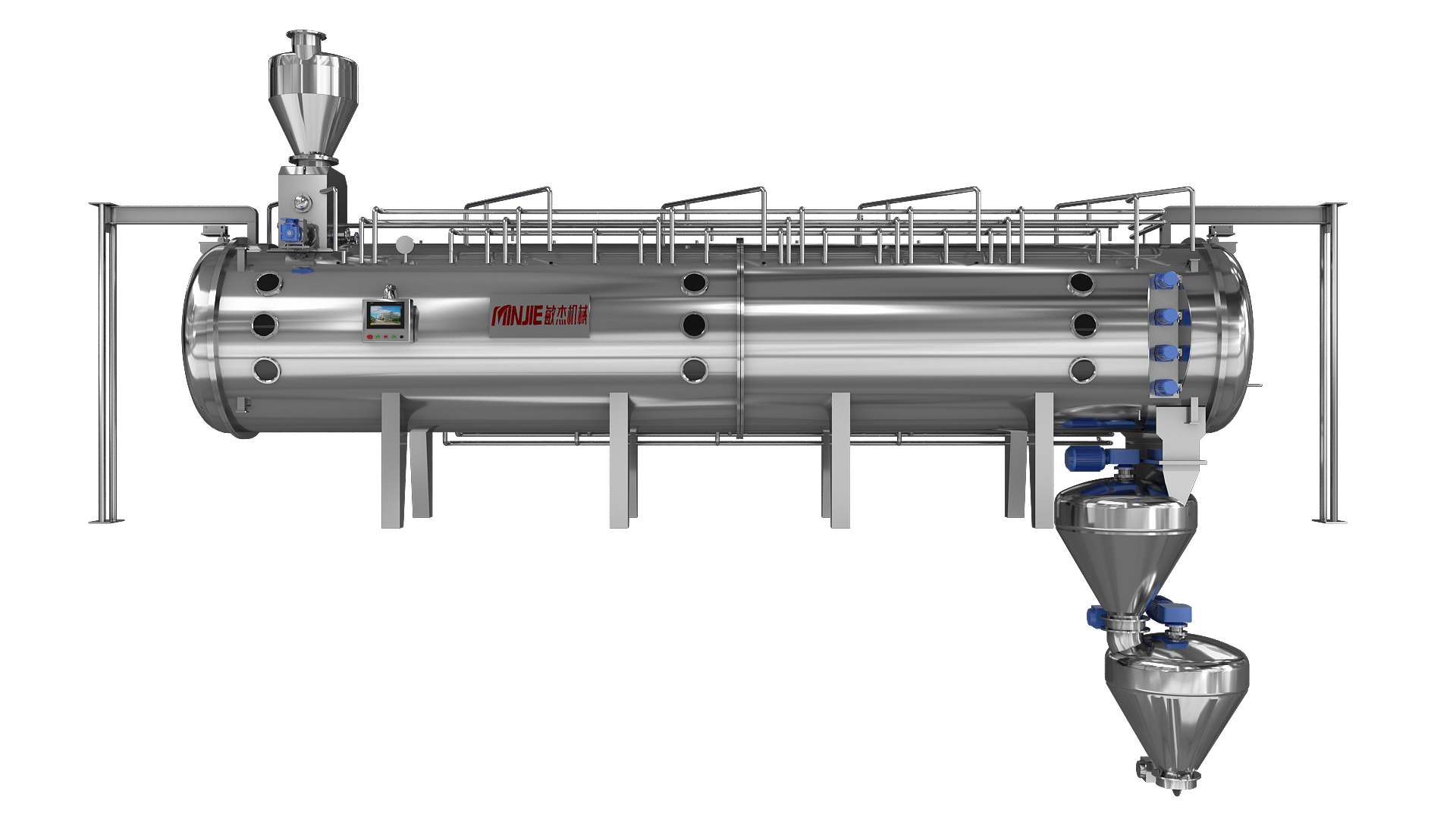

Vacuum belt dryer is continuous infeed and discharge vacuum drying equipment. There are 3-11 layers of conveyor belts inside the cylindrical shell, the more the layers, and the larger the capacity. By feed and distributing device, the wet solid material is input continuously, and then distributed evenly on the conveyor belt under vacuum. Motion of the belt stirs the materials constantly, which speeds up evaporation, thus shortens the drying time, and also makes sure homogeneity during drying. The drying temperature and drying time (from feed-in to discharge) are adjustable(20-150℃)(20-80min). If the dried product needs granulation, it can be comminuted under vacuum, no dust flying appears, which increases products’yielding and avoid contamination. The dried product is discharged continuously by vacuum discharging and collecting device. Organic solvent in the wet materials can be recycled by our system, removing pollution problem caused by traditional dryers, and adding profit.

Vacuum Belt Dryer Videos :

Range of application:

1. Industries: Pharmaceutical, food, chemical, biological2. Drying material state: Solid, crystal, particle, powder, pills3. Some special material: Eeasy oxidation, easy explosion, strong stimulation, high toxicity4. Material needing solvent recycling

Advantage:

▪ Bespoke engineered continuous drying solution to fit your requirements

▪ Continuous and gentle drying preserving maximum colour, flavour and composition, and minimal oxidation

▪ Individual temperature zones allow for product-specific profiles to be developed suited to each perfectly to each product

▪ Less energy used than other drying methods

▪ Viewing windows as standard allow for continuous monitoring, with options for automated monitoring systems available

▪ Product specific feeding and discharging systems

▪ Fully PLC automated operation & CIP cleaning system

▪ GMP standards

Vacuum Belt Dryer Work Flow :

Work flow MINJIE

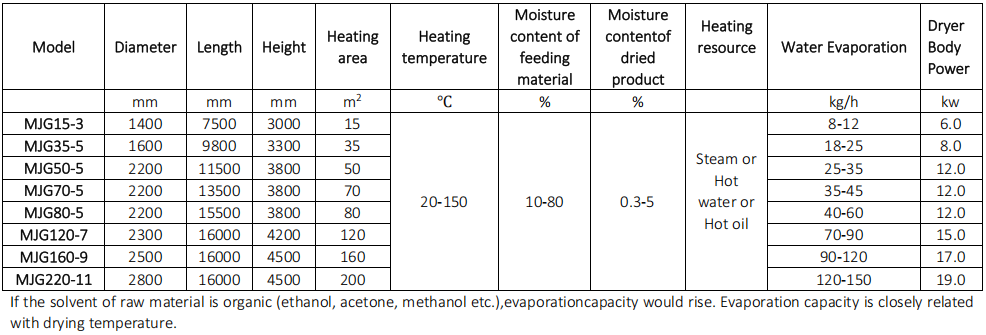

Equipment Specification:

ModelDiameterLengthHeightHeating areaHeating temperatureMoisture content of feeding materialMoisture contentof dried productHeating

resource

Water EvaporationDryer

Body

Power

mmmmmm%%kg/hkw
MJG15-31400750030001520-15010-800.3-5Steam or Hot

water or Hot oil

8-126.00
MJG35-51600980033003518-258.00
MJG50-522001150038005025-3512.00
MJG70-522001350038007035-4512.00
MJG80-522001550038008040-6012.00
MJG120-7230016000420012070-9015.00
MJG160-9250016000450016090-12017.00
MJG220-112800160004500200120-15019.00

If the solvent of raw material is organic (ethanol, acetone, methanol etc.),evaporationcapacity would rise. Evaporation capacity is closely related with drying temperature.

Production Process :

1 Raw materials

1. Raw materials

2 Parts Processing

2. Parts Processing

3 Welding

3. Welding

4. Polishing

4. Polishing

5. Parts assembling

5. Parts assembling

6. Casting polishing

6. Casting polishing

7. Assembling

7. Assembling

8. Inspection

8. Inspection

9. Electrical control cabinet assembling commissioning inspecting

9. Electrical control cabinet assembling commissioning inspecting

10. Pneumatic control cabinet assembling commissioning inspecting

10. Pneumatic control cabinet assembling commissioning inspecting

11. Stocking

11. Stocking

 — WHY CHOOSE MINJIE

A company specialized in research, manufacturing, sales of pharmaceutical, foodstuff, chemical and biotechnology machinery.

  • The first factory in China to produce Vacuum Belt Dryer(VBD)
  • Developed the first set of Energy-saving Evaporator in China
  • 20 years experience in VBD and Evaporator Solution production line
  • Rich experience in overseas export and service (over 500 cooperative partners)
  • Win large market (over 600 sets Minjie series VBD around the world)
  • Supply ability is more than 100 sets VBD per year
  • Has a professional technical R&D team,specialized in researching and developing advanced evaporator and drying equipment
  • Own many patents and authentication certificates for VBD and Evaporator
  • Excellent quality of the products
  • GMP standards
  • Technical support After-sales Service Provided (Installation instructions, Commissioning, Training)
