Project Description

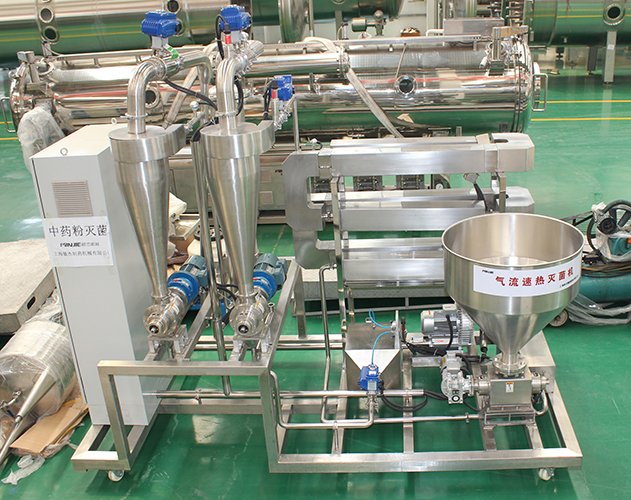

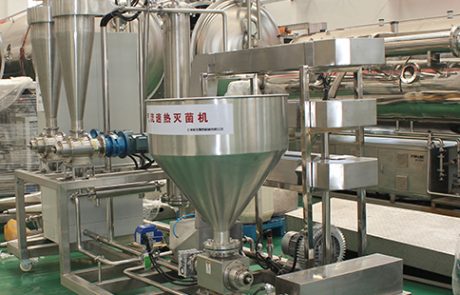

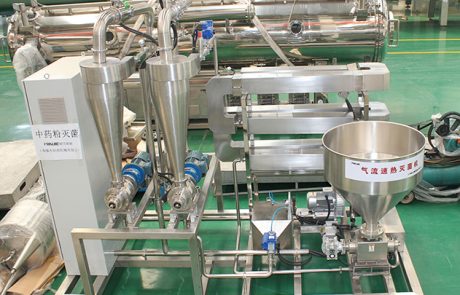

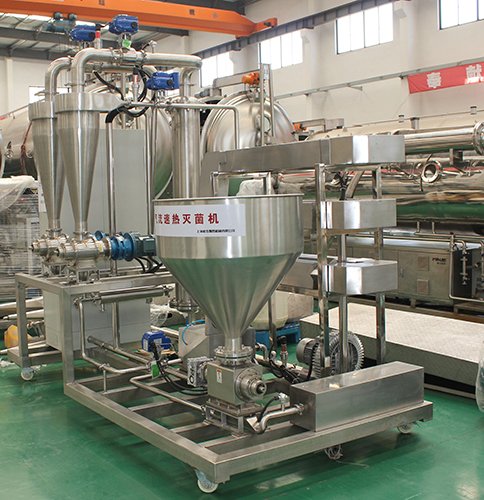

Airflow Instaneously Heating Sterilizer
Airflow instaneously heating sterilizer for various powder & granule materials
Airflow instantaneously heating sterilizer consist of continuous feeding system, heating sterilization system, vapor & powder separating system, cooling system, continuous discharging system, automatic cleaning system, automatic controlling system.
Adopting superheated steam as auxiliary heating media, raising the temperature of air to over180℃ , at the same time, powder and granule material be transported by steam pressure. The sterilizing process is finished in 4 seconds, then through vapor powder separation into cooling zone. After cooling, the material will be separated with air, then discharged.
Airflow instantaneously heating sterilizer solves powder & granule material’s sterilization process problems in traditional Chinese medicine, food & healthcare, and other industries.

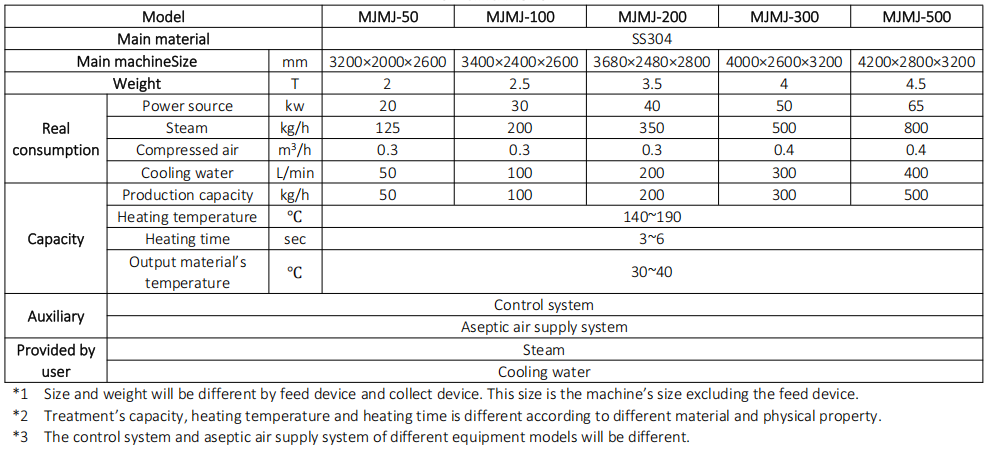

Technology Parameter:
● Heating sterilization temperature： 180℃
● Sterilization capacity：50-150kg/hr
● Installed power：25kw
● Steam consumption：200kg/hr
● Cooling water consumption：10ton/hr
Airflow instantaneously heating sterilizer consist of continuous feeding system, heating sterilization system, vapor & powder separating system, cooling system, continuous discharging system, automatic cleaning system, automatic controlling system.
Adopting superheated steam as auxiliary heating media, raising the temperature of air to over180℃ , at the same time, powder and granule material be transported by steam pressure. The sterilizing process is finished in 4 seconds, then through vapor powder separation into cooling zone. After cooling, the material will be separated with air, then discharged.
Airflow instantaneously heating sterilizer solves powder & granule material’s sterilization process problems in traditional Chinese medicine, food & healthcare, and other industries. Compressed-air consumption：20L/min
Vacuum Belt Dryer Videos :
Range of application:
| 1. Various powder & granule | 2. Leaf & roots : barley leaf, matcha, ginger, maca,etc | 3. Cereals legumes: Rice powder, rice bran, soybean,etc | 4.Mushrooms |
|---|---|---|---|
| 5.Seaweed: ulva lactuca l, spirulina,etc | 6.Fish:bonito stick powder, bonito stick granule,etc |
Advantage:
● Simple & instantaneous sterilization process

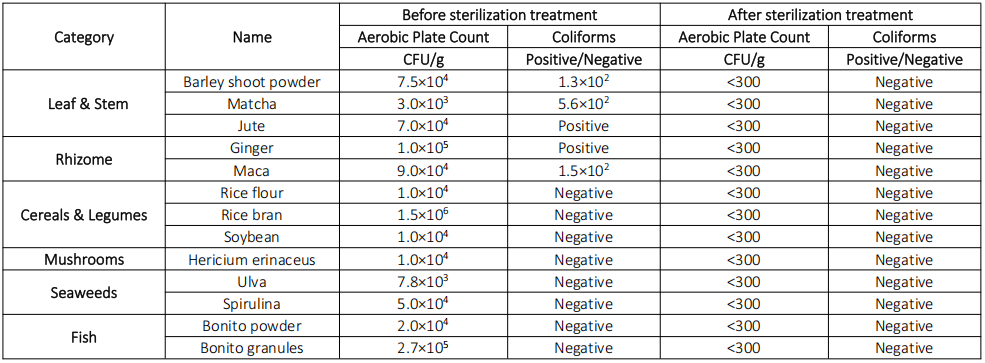

● No residue, the loss rate of effective component is lower than 2%, sterilization indicator- the total number of biological bacteria per gram is less than 300
● Pressure, temperature and every treatment condition can be freely adjusted
● Sterilization application is very wide
Vacuum Belt Dryer Work Flow :
— WHY CHOOSE MINJIE —
A company specialized in research, manufacturing, sales of pharmaceutical, foodstuff, chemical and biotechnology machinery.
- The first factory in China to produce Vacuum Belt Dryer(VBD)
- Developed the first set of Energy-saving Evaporator in China
- 20 years experience in VBD and Evaporator Solution production line
- Rich experience in overseas export and service (over 500 cooperative partners)
- Win large market (over 600 sets Minjie series VBD around the world)
- Supply ability is more than 100 sets VBD per year
- Has a professional technical R&D team,specialized in researching and developing advanced evaporator and drying equipment
- Own many patents and authentication certificates for VBD and Evaporator
- Excellent quality of the products
- GMP standards
- Technical support After-sales Service Provided (Installation instructions, Commissioning, Training)
FAQ
Answer: Minjie engages in research, manufacturing and sales of advanced drying equipment (vacuum belt dryer & thin-layer drying system), low temperature vacuum evaporator and sterilization equipment.
Answer: It is the strength of R&D, the highness of technique, and the standardization of production that synthetically ensures steady quality of Minjie equipment.
Answer: 1 set.
Answer: Consultation, test, technical scheme determination, business negotiation, contract.
Answer: Steam, industrial electricity, water, compressed air.
Answer: CIP cleaning system, automatically and continuously.
Answer: 24-hour service hotline is available. Engineers onsite to guide installation, commissioning and training.
Answer: 1 year after finishing installation and commissioning.
