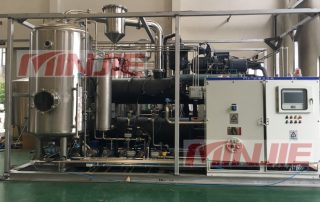

SDR Energy Saving Low Temperature Evaporator
SDR Energy Saving Low Temperature Evaporator For liquid material
Referring to the refrigeration principle, the energy-carrying medium completes the continuous cycle of gas→liquid→ gas in the closed circulation system. During the phase change process, the medium realizes heat release and heat absorption. The heat released is used for the heating and evaporation of the material liquid, while the heat absorbed comes from the condensation heat of the secondary steam generated by the evaporation of the material liquid. The liquid concentration, solvent evaporation and solvent recovery can be realized through the use of both hot and cold energy.
Energy-efficient Evaporator Video :
Range of application:
| 1. Concentration of extract | 2. Concentration of various juice and other liquid | 3. Concentration of various organic solutions | 4. Recovery of various additives |
|---|---|---|---|
| 5. Recovery and concentration of various solutions | 6. Concentration of biological fermentation broth | 7. Dehydration process of pharmaceutical, environmental protection, food, chemical and other industries | 8. Organic solvents concentration(mainly used in flammable and explosive category), such as methanol, ethanol, ethyl acetate, acetone, n-hexane solution |
Advantage:
▪ Little preheating of industrial steam is required at starts up (replaceable by electric heating). Pure electric heating and evaporation can be realized because no steam is needed during normal operation
▪ The whole process operating temperature is 45-65°C. The evaporation temperature can be adjusted at any time according to different material properties. Furthermore, the heating source is lower than 85°C, therefore it is particularly suitable for the evaporation and concentration of thermal sensitive material
▪ The equipment adopts PLC automatic control, it has characteristics of high degree of automation, low labor intensity, automatic feed and discharge, automatic detection and control of density, automatic control of evaporation temperature and vacuum degree as well as other intelligent works
▪ The equipment adopts modular design and assembly. It accomplishes commissioning before leaving the plant and can operates as soon as it interconnected with the auxiliary equipment of users
▪ The equipment has high operation safety. The compressor in the device compresses not gas solvent but heat exchange medium, which completely avoids potential safety hazards. In addition, it has complete electrical explosion-proof design
▪ Low operating cost

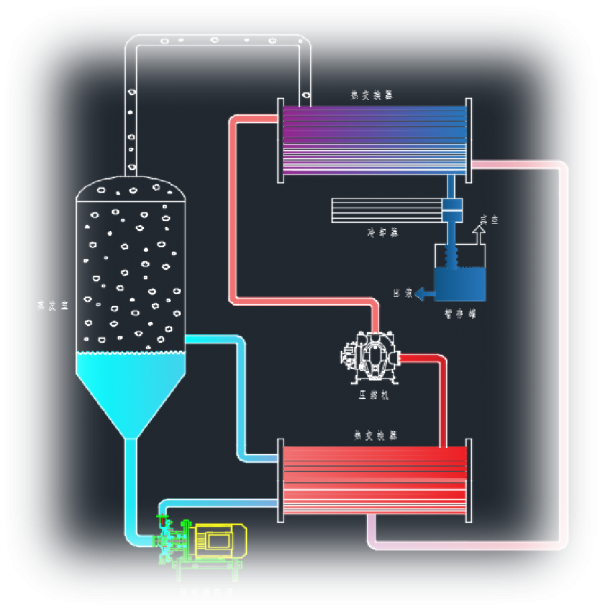

Enery-efficient Evaporator Work Flow :
Equipment Specification:
| Item
Model |
Ethanol evaporation(L/h) | Total Power Kw | Heating Power KW/h | Evaporating Temperature (°C) | Vacuum Degree (MPa) | Dimension (mm) | Weight
(T) |
||
| L | W | H | |||||||
| SDR-1000 | 1000
(Water:600L) |
98 | 75 | 42-65 | -0.05~-0.09 | 5000 | 2700 | 4000 | 9.5 |
| SDR-2000 | 2000
(Water:1200L) |
152 | 115 | 42-65 | -0.05~-0.09 | 5500 | 2700 | 4200 | 12.2 |
| SDR-3000 | 3000
(Water:1800L) |
185 | 130 | 42-65 | -0.05~-0.09 | 6200 | 2700 | 4300 | 14.8 |
| SDR-5000 | 5000
(Water:3000L) |
268 | 225 | 42-65 | -0.05~-0.09 | 7300 | 2700 | 4300 | 19.6 |
Note: The evaporation temperature and heating temperature can be adjusted according to the technological requirements of the materials. The low evaporation temperature may affect the evaporation capacity of the equipment.
— WHY CHOOSE MINJIE —
A company specialized in research, manufacturing, sales of pharmaceutical, foodstuff, chemical and biotechnology machinery.
- The first factory in China to produce Vacuum Belt Dryer(VBD)
- Developed the first set of Energy-saving Evaporator in China
- 20 years experience in VBD and Evaporator Solution production line
- Rich experience in overseas export and service (over 500 cooperative partners)
- Win large market (over 700 sets Minjie series VBD around the world)
- Supply ability is more than 100 sets VBD per year
- Has a professional technical R&D team,specialized in researching and developing advanced evaporator and drying equipment
- Own many patents and authentication certificates for VBD and Evaporator
- Excellent quality of the products
- GMP standards
- Technical support After-sales Service Provided (Installation instructions, Commissioning, Training)
FAQ
Answer: Minjie engages in research, manufacturing and sales of advanced drying equipment (vacuum belt dryer & thin-layer drying system), low temperature vacuum evaporator and sterilization equipment.
Answer: It is the strength of R&D, the highness of technique, and the standardization of production that synthetically ensures steady quality of Minjie equipment.
Answer: 1 set.
Answer: Consultation, test, technical scheme determination, business negotiation, contract.
Answer: Steam, industrial electricity, water, compressed air.
Answer: CIP cleaning system, automatically and continuously.
Answer: 24-hour service hotline is available. Engineers onsite to guide installation, commissioning and training.
Answer: 1 year after finishing installation and commissioning.
