TESO Group Vacuum Belt Dryer and Vacuum Low temperature evaporator Project in Mongolia 1

Customer: TESO Group

Purchase Date: 2019-03

Model: MJY200-10 Vacuum Belt Dryer & MJ-NS-20 Vacuum Low temperature evaporator

Product: Dairy products

TESO Group Vacuum Belt Dryer and Vacuum Low temperature evaporator Project in Mongolia 5TESO Group Vacuum Belt Dryer and Vacuum Low temperature evaporator Project in Mongolia 2

Process introduction: TESO group purchased Minjie Vacuum Low temperature evaporator and vacuum belt dryer for their milk powder making.

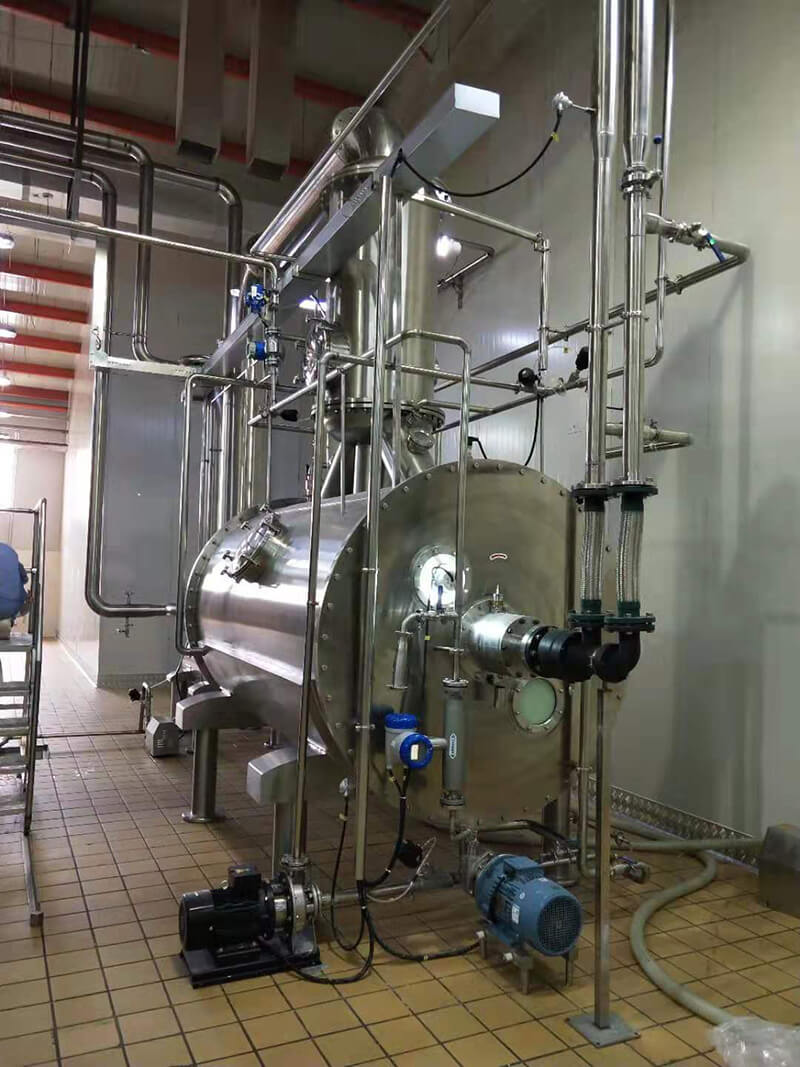

Vacuum Low temperature evaporator

Material temperature: <40℃

The moisture content of raw material: ≈90%

The moisture content of dried material: <40%

TESO Group Vacuum Belt Dryer and Vacuum Low temperature evaporator Project in Mongolia 3

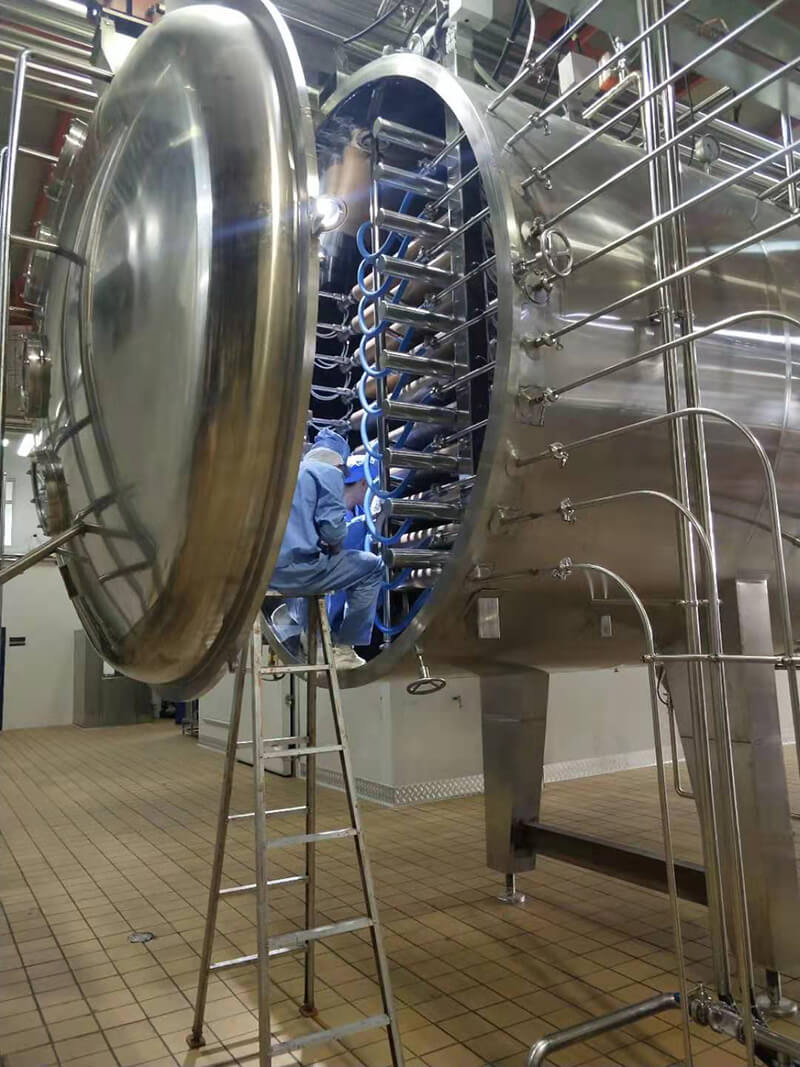

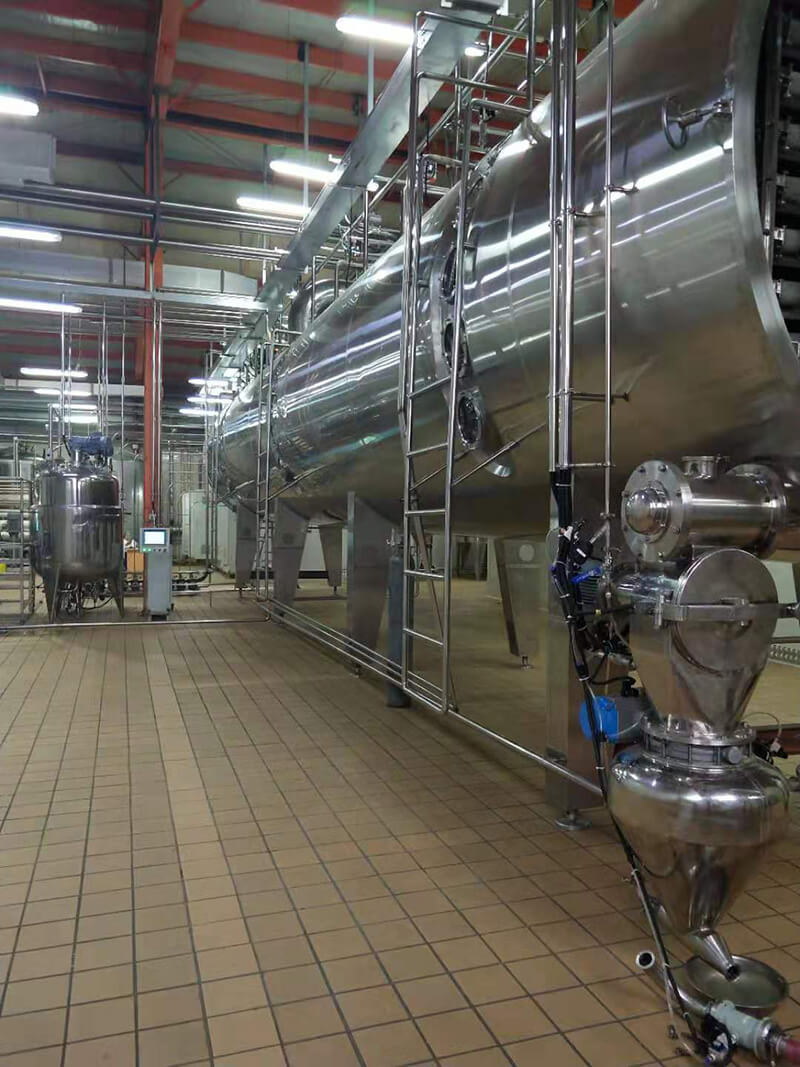

Vacuum Belt Dryer

Material temperature: <60℃

The moisture content of raw material: ≈40%

The moisture content of dried material: <5%

TESO Group Vacuum Belt Dryer and Vacuum Low temperature evaporator Project in Mongolia 4

Dairy products generally have high moisture content. First, they use Minjie vacuum low-temperature evaporator to condense the moisture content of the raw material from about 90% to 40%, and then use Minjie vacuum belt dryer to make milk powder. Because of low temperature, the nutrients in the dairy products are well retained. The drying process is automated, continuous and pipelined, so labor costs are greatly reduced. At the same time, low energy consumption and high product yield are achieved.
